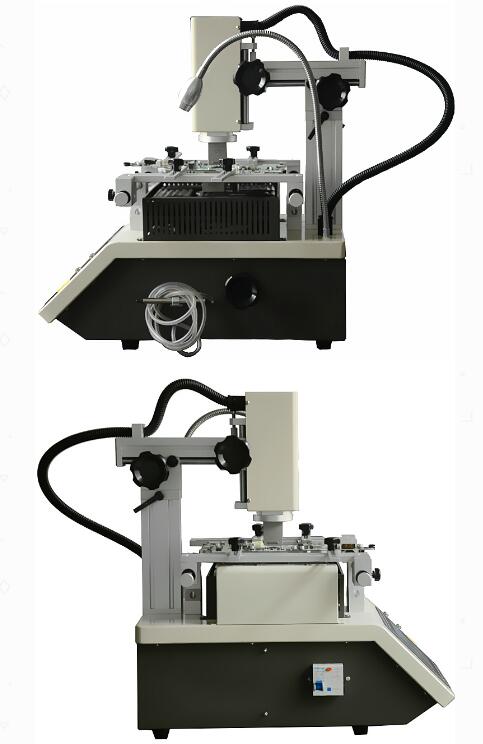

1. The machine adopts high-definition industrial touch screen. The working temperature reflects the data in a curve way to display on the touch screen.
It has functions of curve analysis and curve modification.
2. It can store hundreds of user temperature curve data.
3. Independent heating control in the three temperature zones. Hot air heating in the upper and lower temperature zones. The lower hot air temperature zones can be adjusted up and down, and the bottom temperature zone is red.
When heated outside, the temperature can be accurately controlled at (+2 degrees), and the upper temperature zone can move up and down from front to back. The upper and lower heating zones can be set at the same time.
The output power of the IR preheating zone can be adjusted according to the actual requirements.
4. The heated air nozzle can rotate 360 degrees, which is more suitable for different chip positions. The high precision K-type thermocouple is selected for this machine.
Closed-loop control, external temperature measurement interface to achieve precise temperature detection;
5. Built-in vacuum suction pen, lighting lamp, cross-flow fan, laser lamp and other auxiliary functions; the machine has early warning function.
Intelligent air volume control software is more stable and convenient than traditional control knob.
6. This machine has been certified by CE and has automatic power-off protection device for abnormal accidents. When the temperature is out of control, the circuit can automatically
Power off, with dual over-temperature protection function;
Technical parameters of repairing table:
Ac220v+10%, 50/60hz total power 3800W
Heater Power Upper Hot Air Heating, Maximum 800W
Lower hot air heating, maximum 1200W
Infrared preheating at bottom, maximum 1800W
PCB positioning mode V-shaped chute + universal fixture
The temperature control mode is high precision K-type thermocouple closed-loop control. The temperature is measured independently up and down, and the temperature accuracy can reach positive or negative 2 degrees.
High sensitive touch screen + temperature control module + microcontrollers suitable for PCB size Max300 x 280 mm Min 10 x 10 mm
Suitable Chip Size Max60*60mm Min 1*1mm
1 temperature measuring interface suitable for PCB thickness of 0.3-5mm
Shape size L460*W480*H500mm
The weight of the machine is about 20 kg.
